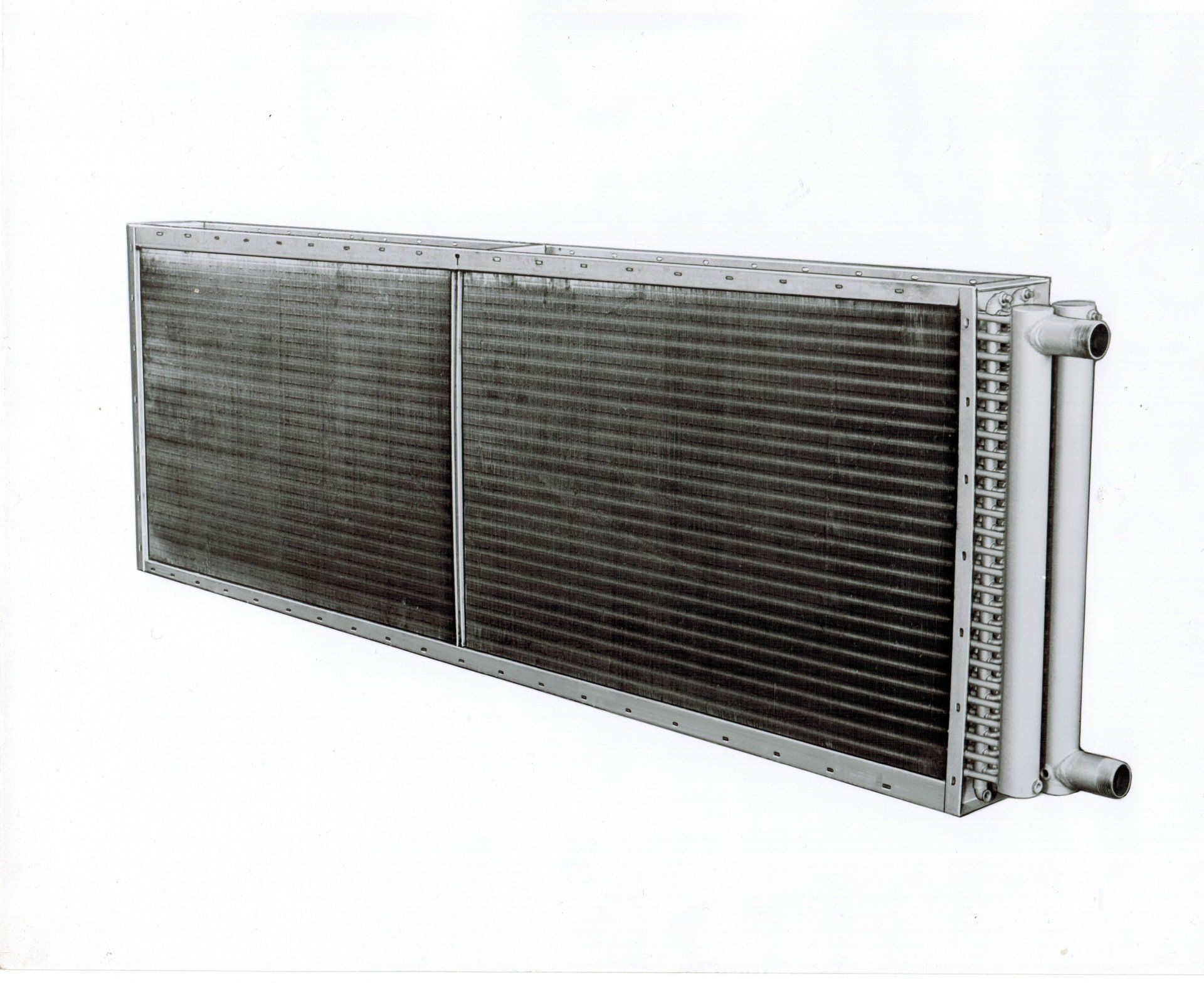

Hot Water Coils

Hot Water Coils

Contact Us
Hot Water Coils

Hot Water Coils

COILS TO WITHSTAND POLLUTED AIR
ANSCOR has not departed from the industry's time proven heavy wall copper construction. Under normal conditions, standard ANSCOR coils should last 20 years. Using extra heavy tubing, copper fins and stainless steel casing, the life expectancy could be up to 40 years. Wetted coils in polluted atmosphere are subject to many unusual corrosive solutions. ANSCOR can provide coils made from materials to withstand these conditions.
CLEANABLE COIL
Removable plugs in headers and return bends - an economical solution for well water applications. Available on one or both ends.

COIL PERFORMANCE FEATURES
Flat, plate type fins, less clogging, low maintenance
Available with baked-on phenolic coating for corrosive atmosphere
Positive draining coils available
Coils are air tested at 225 PSIG under water

POSITIVE DRAINABLE COIL
ANSCOR has such a coil. Each tube is pitched to a separate drainable header, and when properly vented, all water leaves the coil by gravity flow.

REMOVABLE HEADER BOX COIL
Fabricated of various materials - used where serious plugging may be encountered from particulate depositing out of fluid. Access to all tubes for inspection and cleaning. Completely drainable. Similar coils available for glycol applications.
